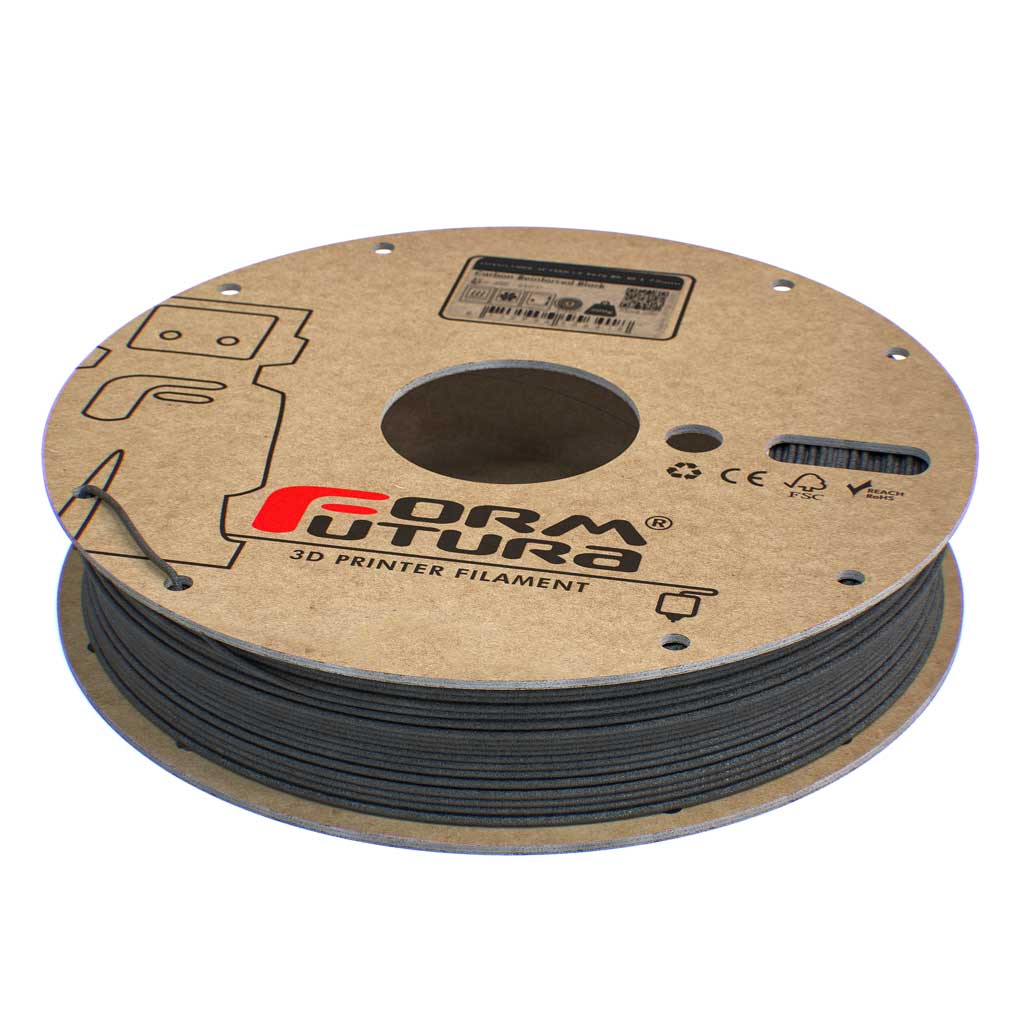

FormFutura - Carbon Reinforced Black Fiber PEEK 1.75mm - 0.5kg

Luvocom 3F PEEK CF 9676 is a carbon-fiber reinforced PEEK (Polyether Ether Ketone) 3D printer filament.

The carbon fibers inside Luvocom 3F PEEK CF 9676 filament significantly improve the stiffness and compressive strength properties of 3D printed parts.The material unlocks industrial 3D printing applications in various industries, such as aerospace, medical, oil & gas, energy, marine, and automotive.

In these industries, it can be used to produce parts that can replace traditional metal and composite parts.Parts that are 3D printed with Luvocom 3F PEEK CF 9676 filament are suitable for use in applications that will be exposed to short term service temperatures of up to 280°C and continious service temperatures up to 250°C.Luvocom 3F PEEK CF 9676 filament is suitable for 3D printing dynamically-stressed parts, chemically- and hydrolytically- resistant parts, non-flammable parts and applications which require inherent flame resistance with low smoke and low toxic gas emissions.Key featuresLehvoss Luvocom 3F PEEK CF 9676 BK insideSuitable for applications with a continuous service temperature of 250°CShort term service temperature of 280°C (during lifetime max.

200h)Heat deflection temperature of 280°CVery high strength and stiffness (also in Z-direction)Excellent mechanical propertiesNon flammableExceptional chemical resistance properties ApplicationsDynamically-stressed partsHighly chemically-resistant partsHydrolytically- resistant partsAerospace applicationsAutomotive The PAEK familyPolyArylEtherKetone (PAEK) is a family of semi-crystalline high performance thermoplastics that are characterized by high mechanical strength and excellent resistance to temperature, chemicals and wear.The most widely used members of the PAEK thermoplastic family are:PolyEtherEtherKetone (PEEK)PolyEtherKetoneKetone (PEKK)PolyEtherKetone (PEK)PolyEtherKetoneEtherKetoneKetone (PEKEKK)PolyEtherEtherKetoneKetone (PEEKK) General printing guidelines *Nozzle size: ≥ 0.4mmLayer height: ≥ 0.10mmExperience level: ExpertPrint temp: ± 400 – 450° CFan speed: 0 – 25%Drying: +4 hours at max.110°CHeat bed: ≥ 120° CEnclosure needed: 90°C heated chamberAdhesion: EasyFix Nr.

VII*) Above displayed settings are meant as guidance to find your optimal print settings.

These ranges in settings should work for most printers, but please do feel free to experiment outside these parameters if you think it is suitable for your printer.

There are a lot of different type of printers, hot-ends and printer offset that it is extremely difficult to give an overall one-size-fits-all setting.AbrasivenessPlease be aware that LUVOCOM 3F PEEK CF 9676 BK filaments contain a relatively high concentration of extremely hard carbon fibres, which have an abrasive nature.

In general these carbon fibres will accelerate the nozzle-wear of brass nozzles, much faster than unfilled filaments.

We recommend to use nozzles from stainless steel or other hardened alloys.Filament lengthρ: 1.36 g/cc0.2 Kg spool0.5 Kg spoolØ 1.75mm± 61m± 153mØ 2.85mm± 23m± 58m Product export informationHS Code: 39169090Description: MonofilamentCountry of origin: the Netherlands Compliance *This filament is compliant to below-listed directives and regulations.RoHS directive 2011/65/ECREACH directive 1907/2006/EC*) This declaration of conformity to directives and regulations is prepared according to our present standard of knowledge and may be amended if new cognitions are available and applies only for the above-described products.
